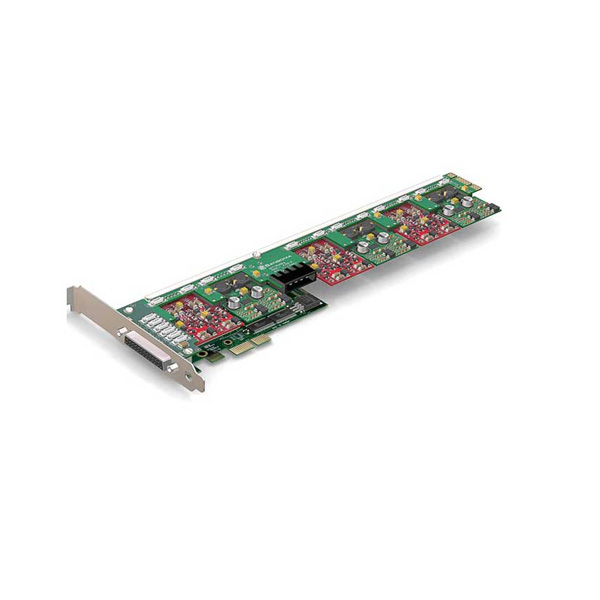

کارت آنالوگ تلفنی سنگوما A400De – Sangoma FXO/FXS Card

مقایسه

توضیحات

– کارت تلفنی استریسک

– دارای اکو کنسلر سخت افزاری

– قابلیت اتصال تا 24 پورت FXO شهری و یا FXS داخلی

– قابل اتصال با سوکت PCIe به تمامی مادربوردهای موجود در بازار

اطلاعات بیشتر

وزن 1000 g
تعداد پورت ها

From 2 to 24 ports supported, mixing FXO and FXS interfaces as required

پشتیبانی از مرکز تلفن های

Asterisk®, FreeSWITCH®, Yate™, as well as other Open Source and proprietaryPBX/Switch/IVR/VoIP gateway applications

نوع اسلات اتصال به سرور

Fully PCI Express compliant, compatible with all commercially available motherboards, proper sharing of PCI interrupts
Single synchronous PCI Express interface for all 24 FXO/FXS ports
32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention

ابعاد

Dimensions: 2U height form factor: 290mm x 55mm for use in a 2U chassi
Short 2U compatible mounting clips available for installation in 2U rack mount servers

توان مصرفی

Power: 800mA peak, operational 300mA max at +3.3 V or 5 V

دمای عملکردی

Temperature range: 0 – 50°C

قابلیت های فکس

With Sangoma, there is no need for a separate analog line to run your fax machine
Using T1/E1 passthrough with Sangoma analog cards, there are no clock slips, buffer overruns, or transmit underruns that cause missed lines, blank sheets, and missed pages when faxing
Sangoma A200 and A400 cards synchronize perfectly with digital T1/E1 cards and the PSTN atomic clock for error-free fax and modem passthrough and superior voice quality over T1 and E1 lines

حذف اکو

دارای قابلیت حذف اکو به صورت سخت افزاری

نوع کابل و اتصل کانکتور

Connects to punch block using the included standard 12-line colour coded telephone cable. Or choose the optional Amphenol-Y cable that connects up to 24 lines to a telephone patch panel

ابزار مدیریت

WANPIPEMON, SNMP, system logs

سیستم عامل های سازگار

Windows®2003, Windows®XP, Windows®Server 2008, Windows®Vista, Windows®7
Linux (all versions, releases and distributions from 1.0 up)

معماری و طراحی کارت

The A400e consists of a Remora™ daughtercard mounted on the AFT PCIe card. The Remora™ card has six sockets, each of which can accept a FXO-2 or FXS-2 module. Each FXO-2 or FXS-2 module supports two FXO or FXS lines, respectively.
Up to one additional Remora™ daughtercard can be mounted in empty slot positions beside the A400e assembly and connected to the A400e base card by a backplane bus connector.
Each 12-port A400 Remora™ card has a robust DB25 connection to an included standard 12-line, colour-coded telephone cable that is ready for hardwiring into a punch block at the PSTN connection

گواهینامه ها

FCC Part 15 Class A, FCC Part 68, CISPR 22, EN 55022 Class A, CIPSR 24, AFIC-S016, IEC 60950 Technical certifications in Russia and Malaysia ISO 9002

گارانتی

یکساله هزارسو
